Principle for Progressive Cavity Single Screw Pumps

PANCHAL Progressive Cavity Eccentric Single Screw Pumps

Positive Displacement
Non Pulsating Metered Flow
Silent Running
Handles Solids & Abrasives
High Suction Lift
Reversible

Video Link:

Progressive Cavity Eccentric Single Screw Pumps

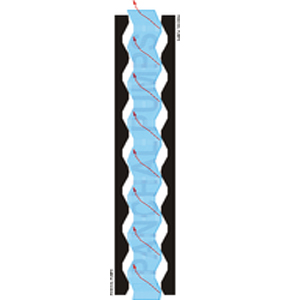

Principle Of Operation

Positive Displacement
A single rotating element producing positive displacement progressing cavities deliver predetermined continuous uniform flow.

Non Pulsating Metered Flow
The pump discharges precalenlated non-pulsating, uniform flow which is accurately repeatable, irrespective of the liquid properties being handled. Capacity is proportional to speed and the pump with a variable speed drive can be applied as an accurate control for any process.

Silent Running
A metallic rotor rotates in a resilient rubber stator produces little noise, well below 90 dbs.

Handles Solids & Abrasives
The pump displacement is not affected by the varying presence of solids or abrasive contents in the liquids. Only the power requirement changes when the solids content raise.

High Suction Lift
PANCHAL Pumps handles water up to 8.4 meter of suction lift.

Reversible
"PANCHAL" industrial pumps are generally reversible as per requirement of the user.

Application Areas of Progressive Cavity Single Screw Pumps

Capacity		275 M3/HR
Temperature		120 0C
Pressure		up to 24 Bar
Solid Handling Capacity	Soft & Compressible	100 mm
	Hard & Angular	up to 25 mm
